| NO. | Description | Data | |
| 1 | Salt rejection rate | 98.5% | |
| 2 | Working pressure | 0.6-2.0Mpa | |
| 3 | Voltage | 200v/50Hz,380V/50Hz etc. customized | |
| 4 | Material | Ss,CPVC,FRP,PVC | |
| 5 | Raw water (sea water) | TDS | <35000PPM |
| Temperature | 15℃-45℃ | ||
| Recovery Rate | 55℃ | ||
| 6 | Water-out conductivity(us/cm) | 3-8 | |
| 7 | Reverse Osmosis (RO) membrane | 8040/4040 | |
| 8 | Inlet Water SDI | ＜5 | |
| 9 | Inlet Water PH | 3-10 | |
| Product characteristic | |||||||
| Item | Capacity(T/H) | Power(KW) | Recovery(%) | One stage water conductivity(μs/cm) | Two Stage water conductivity (μs/cm) | EDI Water conductivity (μs/cm) | Raw water conductivity (μs/cm) |
| HDN-500 | 0.5 | 0.85 | 55-75 | ＜10 | ＜5 | ＜0.5 | ＜300 |
| HDN-1000 | 1.0 | 2.0 | 55-75 | ＜10 | ＜5 | ＜0.5 | ＜300 |
| HDN-2000 | 2.0 | 2.2 | 55-75 | ＜10 | ＜5 | ＜0.5 | ＜300 |
| HDN-3000 | 3.0 | 3.0 | 55-75 | ＜10 | ＜5 | ＜0.5 | ＜300 |
| HDN-5000 | 5.0 | 5.0 | 55-75 | ＜10 | ＜5 | ＜0.5 | ＜300 |
| HDN-6000 | 6.0 | 6.0 | 55-75 | ＜10 | ＜5 | ＜0.5 | ＜300 |
| HDN-10000 | 10.0 | 10.0 | 55-75 | ＜10 | ＜5 | ＜0.5 | ＜300 |
| HDN-20000 | 20.0 | 20.0 | 55-75 | ＜10 | ＜5 | ＜0.5 | ＜300 |
| Components and functions | ||
| NO. | Name | Application |
| 1 | Raw water Tank | Store water,buffering pressure,overcome instability of supplying water by pipe,Ensure to supply water stable and continuously for whole system,normally customer provided |
| 2 | Raw water Pump | Provide needed pressure for every pretreatment filter |
| 3 | Mechanical filter | We use fiber glass or stainless steel vessel as housing, fill quartz sand,it can filter big particles impurities, Suspended substances, colloids etc. |
| 4 | Activated carbon filter | We use fiber glass or stainless steel vessel as Housing, fill activated carbon, remove color, odor, residual chlorine and organics substances. |
| 5 | Water softener | Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+（Main elements for composing scale） |
| 6 | Security filter or pp filter | Prevent large particles, bacteria,viruses into RO membrane, Accuracy is 5 μs |
| 7 | High Pressure Pump | adopt two stage high pressure pump. Provide needed working pressure for RO system,High pressure pump ensure production capacity of pure water.(CNP pump or custom other brand) |
| 8 | Reverse osmosis System | Adopt two stage reverse osmosis system.Can remove particles colloids,organicRO(reverse osmosis)system impurities,heavy metal ions,bacteria,virus,heat source etc.harmful substances and 99% dissolved salts.(RO membranes USA Film tec); Output water conductivity≤2us/cm. |

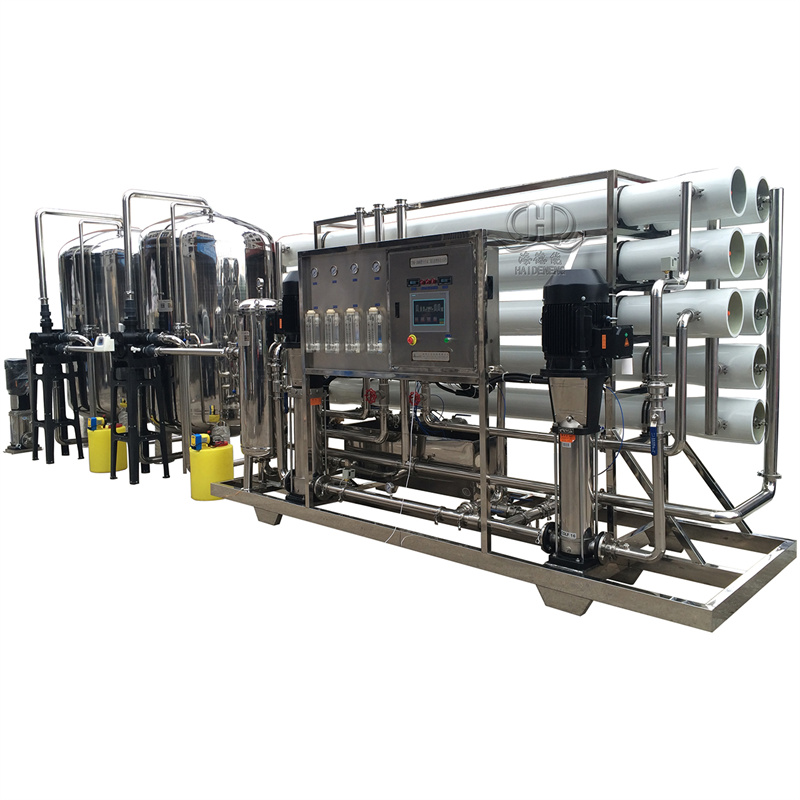

Characteristics of Water Purification Equipment:
1. The entire system is configured with stainless steel, which runs stable and has a refined and beautiful appearance. 2. Equipped with a raw water tank and an intermediate water tank to prevent the impact of unstable tap water pressure on the equipment. 3. Equipped with a dedicated purified water tank with a digital electronic level gauge, rotating spray cleaning, and empty ventilation device. 4. Adopting imported Dow Chemical reverse osmosis membrane BW ultra-low pressure membrane, with high desalination rate, stable operation, and 20% energy consumption reduction. 5. Equipped with a pH adjustment and online detection system to regulate the pH value and prevent the influence of CO2 on the water quality of the produced water. 6. Equipped with ozone and ultraviolet sterilization systems and terminal microfiltration devices. 7. The control system adopts a fully automatic method, with main components using imported components, high stability, and easy and convenient operation. 8. Equipped with a purified water delivery and supply system. 9. All key materials use internationally renowned brands in the industry to ensure quality and are designed with the best configuration.
WZHDN Purified Water Equipment Process Flow:
Raw Water → Raw Water Tank → Raw Water Pump → Multi-Media Filter → Activated Carbon Filter → Water Softener → Safety Filter → First-Level RO System → First-Level RO Water Tank (with pH adjustment device) → Second-Level RO System → Second-Level Purified Water Tank → Purified Water Pump (with ozone sterilization system) → Ultraviolet Sterilization → 0.22μm Microfiltration → Purified Water Use Point Dosing and softening in water treatment systems are two different methods with different purposes and effects. Medication: Medication is a method of changing water quality by adding chemicals to the water. Common chemical treatment methods include chlorination, ozonation, disinfection, etc. These chemicals can be used to kill bacteria, viruses and other microorganisms, remove harmful substances, and improve the taste and smell of water. Dosing treatment is mainly used for water disinfection and purification to ensure water safety and hygiene standards.
Softening treatment: Softening treatment is a method of removing hardness from water. It mainly reduces the hardness of water by removing calcium and magnesium ions in the water. Hardness refers to the concentration of calcium, magnesium and other metal ions contained in water. Water with high hardness is prone to scale during use, affecting water quality and the service life of equipment. Commonly used meth ods for softening treatment include ion exchange, reverse osmosis, etc. Softening treatment can make water more suitable for industrial production, household use and equipment protection.To sum up, chemical treatment is mainly used to disinfect and purify water, remove harmful substances in water, and improve the safety and hygiene standards of water quality; while softening treatment is mainly used to remove hardness in water, reduce the generation of scale, and improve the suitability of water quality.
