Introduction and Maintenance Knowledge of Reverse Osmosis Pure Water Equipment
| Product Detail | |||||
| 1 | Inlet water Type | Well water/ underground water | Outlet water Type | Purified Water | |
| 2 | Inlet water TDS | Below 2000ppm | Desalination rate | 98%-99% | |
| 3 | Inlet Water Pressure | 0.2-04mpa | Outlet water Usage | Coating material production | |
| 4 | Inlet Membrane Water SDI | ≤5 | Inlet Membrane Water COD | ≤3mg/L | |
| 5 | Inlet Water temperature | 2-45℃ | Outlet capacity | 2000 litre per hour | |
| Technical Parameters | |||||
| 1 | Raw Water Pump | 0.75KW | SS304 | ||
| 2 | Pre-treatment part | Runxin automatic valve/ stainless steel 304 Tank | SS304 | ||
| 3 | High pressure Pump | 2.2KW | SS304 | ||
| 4 | RO Membrane | Membrane 0.0001micron pore size desalination rate 99%, recovery rate 50%-60% | Polyamide | ||
| 5 | Electrical control system | Air switch, electrical relay, alternating current contactor switch, control box | |||
| 6 | Frame and Pipe Line | SS304 and DN25 | |||
| Function Parts | |||||
| NO | Name | Description | Purifying Accuracy | ||
| 1 | Quartz Sand Filter | reducing turbidity, suspended matter, organic matter, colloid etc. | 100um | ||
| 2 | Activated carbon filter | remove the color, free chlorine, organic matter, harmful matter etc. | 100um | ||
| 3 | Cation softener | reducing water total hardness, make water soft and tasty | 100um | ||
| 4 | Pp filter cartridge | prevent large particles, bacteria, viruses into ro membranes, remove particles, colloids, organic impurities, heavy metal ions | 5 Micron | ||
| 5 | Reverse osmosis membrane | bacteria, virus, heat source etc. harmful substance and 99% dissolved salts. | 0.0001um | ||
Processing: Feed water Tank→feed water pump→quartz sand filter→active carbon filter→softener→security filter→High pressure Pump→reverse osmosis system→pure water Tank

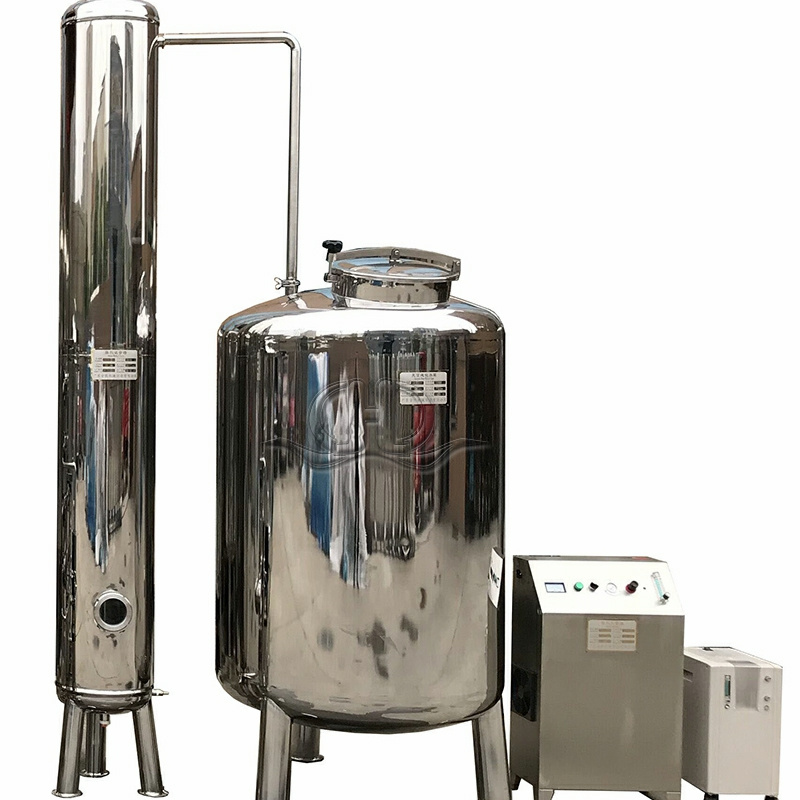

An ozone mixing tower is a device used to mix ozone with other gases or liquids. It usually consists of a feed tube, a nozzle or atomizer and a mixing area. After the ozone enters the mixing tower, it is dispersed into small particles or bubbles through a nozzle or atomizer, and is fully mixed with the feed gas or liquid. The main function of the ozone mixing tower is to fully mix ozone with other gases or liquids to improve the utilization and effect of ozone. The mixed ozone can be used in different fields, such as oxidation, disinfection and deodorization in water treatment and air purification. Unlike ozone sterilizers, ozone mixing towers are mainly used to mix ozone with other gases or liquids, rather than being directly used for sterilization and disinfection. It plays an important role in some industrial and environmental applications, helping to enhance chemical reactions and improve gas or liquid quality. An ozone mixing tower is a device used to mix oxygen and ozone. Ozone is a gas with strong oxidizing effect and is widely used in fields such as water treatment, air purification and disinfection.Ozone mixing towers usually consist of one or more columns with mixers and distributors installed inside. Oxygen and ozone enter the mixing tower through the corresponding gas supply system. After being mixed evenly by the mixer, they are evenly distributed into the medium to be treated through the distributor.
